Product Overview
The new Gen-Eye SDW video inspection & location system has Wi-Fi inside. The Wi-Fi transmitter inside the Command Module sends video to your Smartphone or tablet. A free App lets you easily view and record video inspections at a range of up to 300 to 500 feet. The older SDN systems can be upgraded with the Wi-Fi feature as well.
The Gen-Eye SDW, a beefed up version of the popular Gen-Eye SD, incorporates a number of enhancements to make inspection easier:
- Larger 10.4” LCD color monitor
- Built-in waterproof keyboard
- Integral SD recorder
- WiFi transmitter that sends video to a Smartphone or tablet.
- All in a new, heavy-duty Pelican case.
Weighing just 12 lbs., the versatile, rugged Gen-Eye SDW offers all the features of full-size video inspection systems in a compact, lightweight package. Use the docking arm to mount it on a full size reel to trouble-shoot 3” to 10” lines – or on a mini-reel for 2” to 4” lines.
The SD Card Reader stores video or still images – a one GB card recording approximately two hours of video. The generous 10.4” LCD color monitor provides crisp, clear pictures. And the full-size, waterproof keyboard permits nine pages of on-screen titling in wet environments.
The Gen-Eye SDW also sports a built-in voice-over microphone with switch, LED dimmer control, camera test port, video and audio out connections for external recording devices, and AC and DC power cords. It’s all housed in a heavy-duty Pelican case to protect your investment.
FEATURES
- 4″ LCD monitor for crisp, clear images.
- SD card reader to store video or still images.
- Wi-Fi transmitter inside the Command Module sends video to your Smartphone or tablet.
- Full waterproof keyboard for on screen titling.
- Self-leveling color camera automatically keeps the picture right side up.
- Heavy duty Pelican Case protects electronics
- Command Module mounting bracket for full size reel or mini reel.
- AC/DC switchable for use with a truck battery.
- Built in voiceover recording and Date/Time Stamp.
- On-screen distance counter.

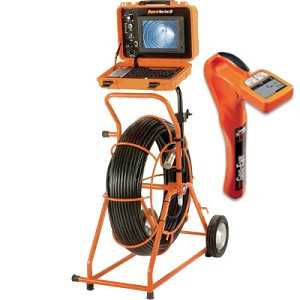

- Full size reel carries 200, 300, or 400 ft. Gel-Rod® to inspect 3” to 10” lines.

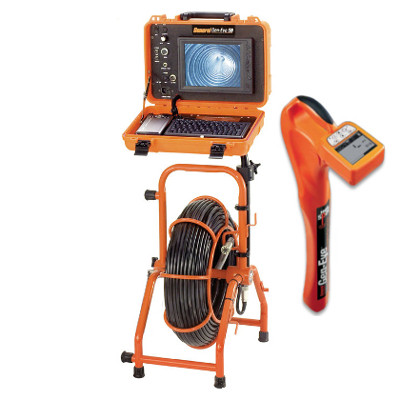

- Mini-reel carries 100 or 200 ft. Gel-Rod® to inspect 2” to 4” lines.
- Built-in 512 Hz Transmitter.
Gel-Rod® Push Rods
Patented Gel-Rod push rod withstands tough abuse in the line. The Gel in the cable keeps the moisture away from the wires if it’s ever cut or abraded. Further, the dual layer/dual color construction let’s you see cable wear so it can be repaired before it becomes a problem. The Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.
Big Capacity Reels
The standard reel holds 200 ft., 300 ft., or 400 ft. of push rod on a sturdy frame and takes up little space in your truck. Eight inch wheels ensure easy transport to and from the job. The mini reel carries 100 ft. or 200 ft. of push rod in a compact frame for easy handling without taking up too much room in your truck.
Advanced Skid Designs Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″ and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.
- WiFi Transmitter
Sends video to your Smartphone or tablet. A free App lets you easily view and record video inspections at a range of up to 300 to 500 feet. - Large 10.4″ Screen
The larger 10.4” LCD monitor gives you crisp, clear images to make it easier to see the picture while doing inspections. - Waterproof Keyboard
You get up to nine pages of text to add your company name and job location to each video you make. - Integral SD Recorder
Record video or still images. Stores as much as 32 GB of data on one card. - Self-Leveling Camera
Automatically keeps picture right side up as the camera glides through the line. Just 1.625” in diameter with 16 Bright-White LED’s to illuminate up to 10” lines. - Mini Self-Leveling Camera
Mini Self-Leveling camera is just 1.125” in diameter with 4 Super Bright LEDs to light up 2” to 4” lines with 15% more candle power than other models.
- Heavy-Duty Pelican Case
Protects LCD screen, electronics, and your investment. - Built-in AC/DC converter
Allows you to operate in the field with truck power alone. - Built-in voice over recording
Internal microphone and on/off switch lets you add commentary to your videos. - On-screen distance counter
Lets you keep track of how much push-rod you’ve fed into the line. Switchable between standard and mini reels. - Date and Time Stamp
Internal microphone and on/off switch lets you add commentary to your videos. - Flexibility, Strength, Durability
A tough, Gel-Rod® push rod protects against moisture damage if the rod is cut or abraded. Its Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power. - Other features include
Internal 512 Hz transmitter, dimmer control, camera test port, 2″, 3” and 6” trap skids, and storage compartment for power cords, tools, and remote controls.
SPECIFICATIONS
Gen-Eye SDW Specifications
Line Capacity:
Self-Leveling Color Camera – 3” to 10”
Standard Color Camera – 3” to 10”
Mini Self-Leveling Color Camera – 2” to 4”
Color Mini – 2” to 4”
Reel Capacity:
Self-Leveling Color Camera – 200, 300, 400 ft.
Standard Color Camera – 200, 300, 400 ft.
Mini Self-Leveling Color Camera – 100 or 200 ft.
Color Mini – 100 or 200 ft.
Sensitivity:
Self-Leveling Color Camera – 0.5 Lux
Standard Color Camera – 0.5 Lux
Mini Self-Leveling Color Camera – 0.008 Lux
Color Mini – 0.5 Lux
Lighting:
Self-Leveling Color Camera – 16 White LED’s 88K MCD
Standard Color Camera – 16 White LED’s 88K MCD
Mini Self-Leveling Color Camera – 4 Super Bright White LED’s 78K MCD
Color Mini – 12 White LED’s 68K MCD
White Balance:
Auto High Speed
Camera Dimensions:
Self-Leveling Color Camera – 1.625” Dia. X 2.7” Long
Standard Color Camera – 1.625” Dia x 2.2” Long
Mini Self-Leveling Color Camera – 1.125” Dia. X 1.74” Long
Color Mini – 1.125” Dia. X 1.625” Long
Push-Rod Diameter:
Self-Leveling Color Camera – .475” Gel-Rod®
Standard Color Camera – .475” Gel-Rod®
Mini Self-Leveling Color Camera – .400” Gel-Rod®
Color Mini – .400” Gel-Rod®
Reel Dimensions:
Self-Leveling Color Camera – 29” L x 16” W x 33-1/2” H
Standard Color Camera – 29” L x 16” W x 33-1/2” H
Mini Self-Leveling Color Camera – 18” L x 16” W x 19” H
Color Mini – 18” L x 16” W x 19” H
Gen-Eye SDN Case Dimensions:
10-1/2” L x 14” W x 6” H (Closed)
12-1/2” H (Open)
LCD Screen Size:
10.4″
Video Format:
NTSC or PAL
Power:
110v/60 Hz AC, 12 VDC
Operating Temperature:
14° F to 122° F
-10° C to 50° C
