Product Overview

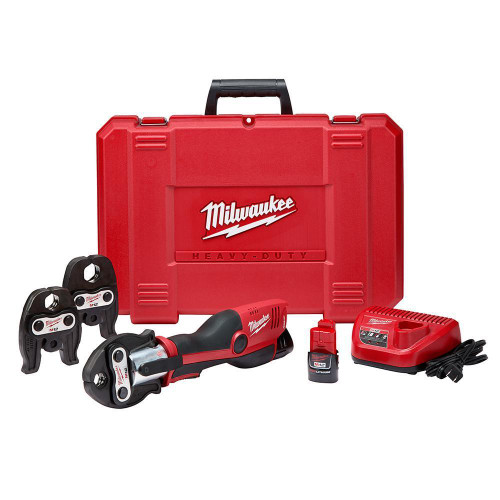

Milwaukee 2473-20 M12™ FORCE LOGIC™ Press Tool
The M12™ FORCE LOGIC™ Press Tool is the single lightest press tool in the market today and represents a new level in portability and accessibility around installed pipe. Featuring a one-handed, in-line design, the M12™ FORCE LOGIC™ Press Tool will operate nearly anywhere you can fit your arm. Utilizing Milwaukee® Redlink™ Electronics, the M12™ Force Logic™ Press Tool monitors the force output to ensure quality connections and provide the user peace of mind by visually indicating both a secure connection and when the tool needs calibration. Featuring the best calibration standard in the industry, the tool only require service every 32,000 crimps. This allows users up to 4X more connections between services, keeping the tool on the jobsite up to 4X longer than competitive units. When used with M12™ FORCE LOGIC™ Press Jaws this tool delivers quality press connections on all major fitting brands including Viega® ProPress™ Systems, Elkhart® APOLLOXPRESS™, and Grinnell® G-Press copper systems. Powered by the M12™ Red Lithium battery means this is the only press system where you can Cut, Fasten and Connect on One System.
Includes:
(1) M12™ FORCE LOGIC™ Press Tool (2473-20)
(2) M12™ REDLITHIUM™ CP1.5 Battery Pack (48-11-2401)
(1) M12™ Lithium-ion Battery Charger (48-59-2401)
(1) Hard Carrying Case
Key Features:
Features the best calibration standard in the industry Cut, fasten and connect all on one system. Accommodates M12™ 1-1/4 in. press jaw (sold separately)49-16-2453 Performs 32,000 crimps between service inspections Batteries recharge in 30 minutes 5-year tool warranty; 2-year battery/charger/jaw warranty Compatible with all M12™ batteries & chargers Can be operated with one hand while delivering up to 5400 lbs. of force
Specifications:
Voltage12V
Force5,400 lbs
Approx Cycle Time5 Seconds
Jaw Warranty2 Year
Jaw Capacity1/2" to 1 1/4" CU
Length12.6"
Tool Warranty5 Years
Width2.75"
Battery SystemM12
Weight3.8 lbs
Power SourceCordless
