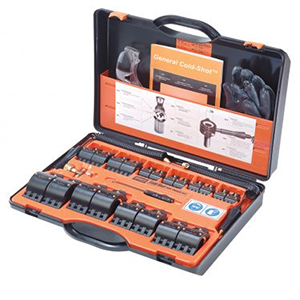

General CST2 Cold-Shot Pipe Freeze Kit
With a Cold-Shot, you don’t have to drain water lines, sprinkler systems, or hot water systems before cutting pipe or tubing. It keeps a fully pressurized system operating while you make repairs.
The Cold-Shot freezes liquids in steel, copper, cast iron, aluminum and plastic pipes ranging from 1/8" through 2" (10 to 60mm) using carbon dioxide (CO2). Dip tube-type CO2 cylinders are available from any welding supply house.
The Cold-Shot works faster than “refrigerator-type” units, is more compact and less expensive. It’s faster and uses less CO2 than “bag-type” pipe freezers, because the freeze head makes a better seal around the pipe. In five minutes you’re ready to go to work on 1/2" copper tubing, and just three minutes for cast iron pipe.
Includes:
10 sets of freeze heads for 1/8" 2" lines, two high pressure spiral hoses w/grips & injectors, T-Distributor, locking nut, hex head screwdriver, rubber gloves, goggles, and carrying case
|
The freezing times and CO2 requirements in the table below are general guidelines based on a water temperature 68 F° (20C°). These figures will vary for other temperatures. Longer freezing times are required for plastic pipe.
|
|||
|
FREEZE HEAD SIZE
|
MATERIAL
|
FREEZING
TIME |
FREEZE OPERATIONS
PER FREEZE HEAD PER 20 LBS (10 kg) CYLINDER |
|
1/8"
(10 / 12mm) |
Steel
Copper |
1 min.
1 min. |
160
165 |
|
1/4" |
Steel
Copper |
1 min.
2 min. |
130
75 |
|
3/8"
(18 mm) |
Steel
Copper |
2 min. |
65
50 |
|
1/2"
(22 mm) |
Steel
Copper |
3 min.
5 min. |
45
30 |
|
3/4"
(28 mm) |
Steel
Copper |
5 min.
7 min. |
29
22 |
|
1"
(35 mm) |
Steel
Copper |
7 min.
10 min |
20
15 |
|
1-1/4"
(42 mm) |
Steel
Copper |
11 min.
14 min. |
15 |
|
1-1/2"
(54 mm) |
Steel
Copper |
16 min.
24 min. |
10
7 |
|
2"
(60 mm) |
Steel
Copper |
29 min.
40 min. |
5
2 |
